TT2222 transistor is a used transistor for horizontal deflection output in color TV applications.
Part number : TT2222LS ( = 2SC5793 )
Functions : NPN Transistor ( Vceo : 800V, Vcbo : 1600V, Ic : 10A, Pd : 65W )
Package: TO-3P Type
Manufacturer: Sanyo
Description
TT2222 is transistor for Color TV Horizontal Deflection Output.
TT2222 is an NPN high voltage transistor. This is a transistor that handles high voltage and high current, mainly used in color TV horizontal frequency output (Horizontal Deflection Output) circuits.
This transistor can handle a high voltage of 1600V and a high current of 10A. This allows it to reliably handle the high voltages and currents required by the color TV’s horizontal frequency output circuit.
Features
1. Transitor for TV
2. High Voltage Color Display Horizontal Deflection Output
3. Color TV Horizontal Deflection Output Applications
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage: Vcbo = 1600 V
2. Collector to Emitter Voltage: Vceo = 800 V
3. Emitter to Base Voltage: Vebo = 5 V
4. Collector Current: Ic = 10 A
5. Total Dissipation: Pc = 65 W
6. Junction Temperature: Tj = 150°C
7. Storage Temperatue: Tsg = -55 ~ +150°C
TT2222 transistor equivalent
ST2001HI : 1500 / 800V, 10A, 55W, tf = 0,2us [ ST2001HI Datasheet PDF ]
KSD5703 : 1500 / 800V, 10A, 70W, tf = 0,1us
TT2202 : 1500 / 800V, 10A, 30W, tf = 0,3us
TT2140 : 1500 / 800V, 6A, 20W, tf = 0,3us [ TT2140 datasheet ]

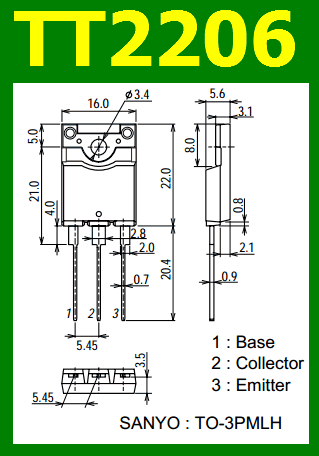

Pinout
Functions
1. High speed.
2. High breakdown voltage
3. High reliability (Adoption of HVP process).
4. Adoption of MBIT process.
5. On-chip damper diode.
TT2222 Datasheet PDF
