STPR1620CT Datasheet – 200V Rectifier Diode

STPR1620CT Datasheet PDF learn more. This is a kind of rectifier diode.

Part number : STPR1620CT

Functions : Ultra-Fast Recovery Rectifier Diode

Package information : TO-220AB, D2PAK, I2PAK

Manufacturer : ST

Image :

STPR1620CT Rectifier Diode

The texts in the PDF file :

Low cost dual center tap rectifier suited for Switched Mode Power Supplies and high frequency DC to DC converters. Packaged in D2PAK, I2PAK or TO-220AB, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

FEATURES

1. SUITED FOR SMPS
2. LOW LOSSES
3. LOW FORWARD AND REVERSE RECOVERY TIME
4. HIGH SURGE CURRENT CAPABILITY
5. Glass passivated chip
6. Superfast switching time for high efficiency
7. Low forward voltage drop and high current capability
8. Low reverse leakage current
8. High surge capacity
9. Plastic package has UL flammability classification 94V-0

[ … ]

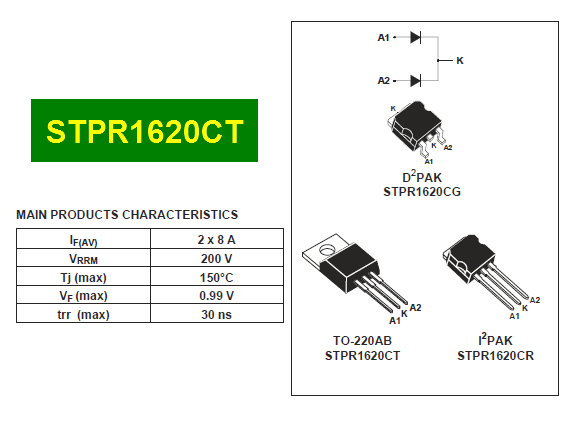

Pinout

STPR1620CT pinout datasheet

MECHANICAL DATA

1. Case : TO-220AB molded plastic
2. Polarity : As marked on the body
3. Weight : 0.08 ounces, 2.24 grams
4. Mounting position : Any

Reference Site : https://www.arrow.com/en/products/stpr1620ct/stmicroelectronics
