LNK304PN – LinkSwitch, Off-Line Switcher IC

Part number : LNK304PN

Functions : Lowest Component Count, Energy-Efficient Off-Line Switcher IC

Package information : P ( DIP 8-B ), G ( SMD-8B ) Type

Manufacturer : Power Integrations, Inc


LNK304PN Link Switcher IC

Features

Cost Effective Linear/Cap Dropper Replacement

1. Lowest cost and component count buck converter solution

2. Fully integrated auto-restart for short-circuit and open loop fault protection – saves external component costs

3. LNK302 uses a simplified controller without auto-restart for very low system cost

4. 66 kHz operation with accurate current limit – allows low cost off-the-shelf 1 mH inductor for up to 120 mA output current

5. Tight tolerances and negligible temperature variation

6. High breakdown voltage of 700 V provides excellent input surge withstand

Pinout :

LNK304PN datasheet pinout

Functions :

LinkSwitch-TN is specifically designed to replace all linear and capacitor-fed (cap dropper) non-isolated power supplies in the under 360 mA output current range at equal system cost while offering much higher performance and energy efficiency.

LinkSwitch-TN devices integrate a 700 V power MOSFET, oscillator, simple On/Off control scheme, a high-voltage switched current source, frequency jittering, cycle-by-cycle current limit and thermal shutdown circuitry onto a monolithic IC.

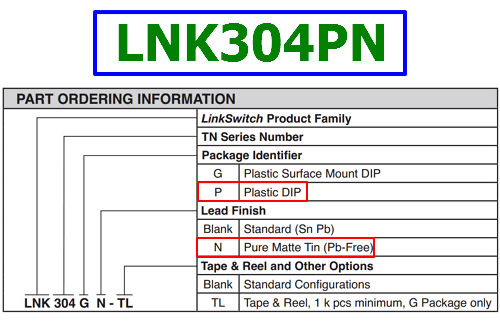

Ordering Information

LNK304PN Ordering Information





LNK304PN Datasheet PDF

LNK304PN pdf



Other data sheets within the file : LNK302D, LNK302G, LNK302P, LNK304D, LNK304G
