AD84064Q – DC-DC Step-Down IC

AD84064Q is a DC-DC buck converter IC, containing a temperature-compensated reference voltage source (1.25V).

Part number : AD84064

Functions : DC-DC step-down circuit

Package information : DIP 8 PIN

Manufacturer : Shenzhen Universal Microelectronic


AD84064Q pdf

Description

AD84064Q is an integrated circuit dedicated to the control section of a DC-DC buck converter. The chip integrates a temperature-compensated bandgap reference source circuit, a duty cycle control oscillator, driver and high-current output switch. Compared with the MC34063 product, it can use the least external components to form a switching buck converter.

A DC-DC step-down bucket converter IC is a semiconductor device that provides an output voltage by stepping down the input voltage. These ICs are primarily used in power-limited systems or battery-operated devices.

A step-down bucket converter performs the function of converting the output voltage from a higher input voltage to a lower value. To achieve this, switching transistors are used to periodically switch the input voltage, and inductors and diodes are used to stabilize the voltage. Energy loss is minimized in this process, enabling efficient voltage conversion.

Pinout
AD84064Q pinout



Functions

The IC is a DC-DC buck converter IC, containing a temperature-compensated reference voltage source (1.25V).

The composition can be DC-DC step-down circuit. Compared with the 34,063 products can be achieved with a minimum of external components constitute switching buck converter, widely applicable.

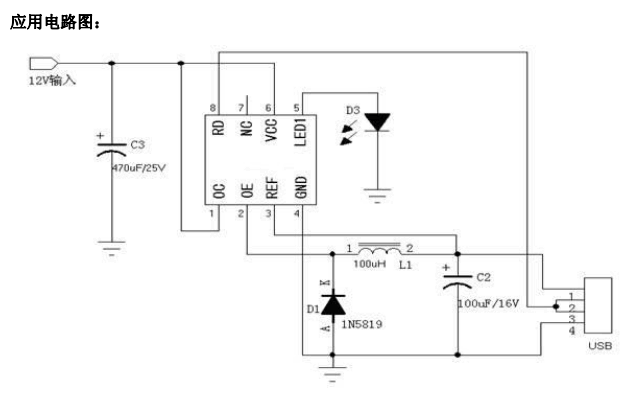

Application Circuits

AD84064Q datasheet

Applications

1. DC-DC Converter Module

2. ADSL Modems

3. Battery Chargers

Static electricity can be generated in many places. Taking the following protective measures can effectively prevent circuits from being affected by static electricity.

Damage caused by discharge

1. Operators should be grounded through anti-static wrist straps.

2. The shell of the device must be grounded.

3. Tools used during assembly must be grounded.

4. Conductor packaging measures must be used to effectively prevent circuits from being affected by static electricity.

AD84064Q Datasheet PDF

AD84064 pdf

PDF Download : [ AD84064.PDF ]
