R8A66150SP – 12-BIT I/O EXPANDER

R8A66150SP Datasheet PDF learn more.

Part number : R8A66150SP

Functions : This is a kind of semiconductor, 12-BIT I/O EXPANDER.

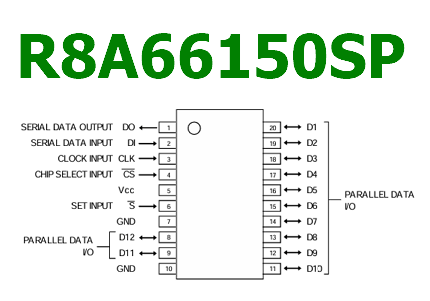

Pin arrangement :

Package information :

Manufacturer : Renesas Technology

Image :

R8A66150SP Datasheet PDF

The texts in the PDF file :

R8A66150SP 12-BIT I/O EXPANDER REJ03F0257-0100 Rev. 1.00 Jan.08.2008 DESCRIPTION R8A66150 is a semiconductor integrated circuit which has 12-bit shift register function to execute serial in parallel out conversion and parallel in – serial out conversion. Built in two shift registers for serial in – parallel out and parallel in – serial out are constructed independently, This IC is able to read serial input data into a shift register while output the serial data converting from the parallel data input. Also, parallel data I/O pins can be set to input mode or output mode by a bit. R8A66150 is useful in a wide range of applications, such as MCU (micro controller unit) I/O port extension and serial bus system data communication. R8A66150 is the succession product of M66006. FEATURES Bi-directional serial communication with MCU Serial data can be input during parallel to serial data conversion Parallel data I/O pins can be set input mode or output mode by a bit Schmitt input (DI, CLK, /S, /CS) N-ch open drain output (DO, D1~D12) Parallel data I/O pins (D1~D12) Wide supply voltage range (Vcc=2.0 to 6.0V) Wide operating temperature range (Ta=-40 to 85 oC) APPLICATION Serial – parallel or parallel – serial data conversion for MCU peripheral. Serial bus control by MCU. PIN CONFIGURATION (TOP VIEW) SERIAL DATA OUTPUT SERIAL DATA INPUT DO DI 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 PARALLEL DATA I/O CLOCK INPUT CLK CHIP SELECT INPUT CS Vcc SET INPUT S GND PARALLEL DATA I/O D12 D11 GND REJ03F0257-0100 Rev.1.00 Jan.08.2008 Page 1 of 7 R8A66150SP BLOCK DIAGRAM Vcc 5 Vcc Shift register 1 D12 D11 D10 CLK 3 S 6 DO D3 D2 D1 1 DO CLK, S, CS, DI S CS 4 Control circuit D1 19 D2 18 D3 20 11 9 D10 D11 8 D12 Vcc Vcc Q12 Q11 Q10 Q3 Q2 Q1 Parallel output latch D12 D11 D10 D3 D2 D1 Q12 Q11 Q10 DI DI 2 7 10 DO D1~D12 Q3 Q2 Q1 Shift register 2 Output type GND GND FUNCTION The R8A661 [ … ]

R8A66150SP PDF File
