78DL05S – TA78DL05S

78DL05S Datasheet PDF learn more.

Part number : 78DL05S

Functions : This is a kind of semiconductor, TA78DL05S.

Pin arrangement :

Package information :

Manufacturer : Toshiba Semiconductor

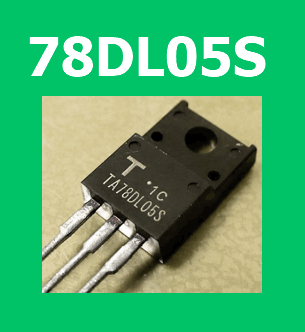

Image :

78DL05S Datasheet PDF

The texts in the PDF file :

TA78DL05,06,08,09,10,12,15S TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA78DL05S,TA78DL06S,TA78DL08S,TA78DL09S, TA78DL10S,TA78DL12S,TA78DL15S 5 V, 6 V, 8 V, 9 V, 10 V, 12 V, 15 V Three-Terminal Low Dropout Voltage Regulator The TA78DL××S series consists of positive fixed output voltage regulator IC capable of sourcing current up to 250 mA. Due to the features of low dropout voltage and low standby current, these devices are useful for battery powered equipment. This series includes current limiting, thermal shutdown, overvoltage protection, input fault protection and excessive transient protection circuits internally.

Features

l Low standby current of 500 µA typical. Weight: 1.7 g (typ.) l Maximum output current up to 250 mA. l Low dropout voltage of less than 0.6 V (@ IOUT = 0.2 A). l Multi-protection: Reverse connection of power supply, 60 V load dump, thermal shut down and current limiting. l Metal fin (tab) is fully covered with mold resin. (TO-220 NIS package) Pin Assignment Marking side 132 IN GND OUT Block Diagram 1 2003-01-29 Maximum Ratings (Ta = 25°C) Characteristics Operating input voltage Input voltage of surge Power dissipation (Ta = 25°C) (Tc = 25°C) Operating temperature Storage temperature Junction temperature Thermal resistance Storage temperature·time Symbol VIN VIN PD Topr Tstg Tj Rth (j-c) Rth (j-a) Tsol TA78DL05,06,08,09,10,12,15S Rating 29 60 2 20 −40~85 −55~150 150 6.25 62.5 260 (10s) Unit V V W °C °C °C °C/W °C TA78DL05S Electrical Characteristics (Unless otherwise specified, VIN = 14 V, IOUT = 10 mA, Tj = 25°C) Characteristics Output voltage Line regulation Load regulation Quiescent current Dropout voltage Max operating voltage Symbol VOUT Reg·line Reg·load IB VD VIN Test Circuit Test Condition ― 5.35 V ≤ VIN ≤ 26 V, −40°C ≤ Ta ≤ 85°C ― 9 V ≤ VIN ≤ 16 V 6 V ≤ VIN ≤ 26 V ― 10 mA ≤ IOUT ≤ 200 mA ― IOUT ≤ 10 mA, 6 V ≤ VIN ≤ 26 V ― I [ … ]

78DL05S PDF File
