2SC2783 – 36V UHF 8 Amp 150W – Toshiba

Part number : 2SC2783

Function : TRANSISTOR (UHF BAND POWER AMPLIFIER APPLICATIONS)

Manufacturer : Toshiba Semiconductor


2SC2783 Image


Output Power : Po = 40W ( Min.) ( f=470Mhz, Vcc=12.5V, Pi=13W )

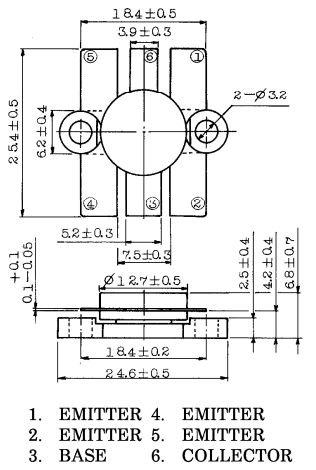

Pinout

2SC2783 Pinout

Product Information

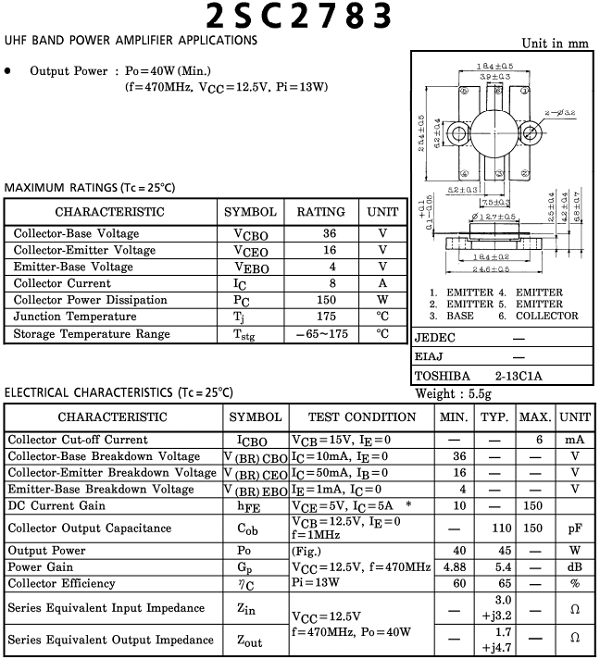

2SC2783 Datasheet PDF

2SC2783 Datasheet PDF
