2W10G – GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

2W10G Datasheet PDF learn more.

Part number : 2W10G

Functions : This is a kind of semiconductor, GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER.

Pin arrangement :

Package information :

Manufacturer : General Semiconductor

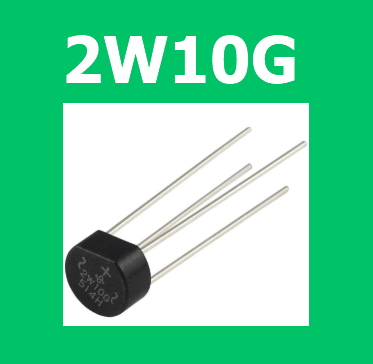

Image :

2W10G Datasheet PDF

The texts in the PDF file :

2W005G THRU 2W10G GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Reverse Voltage – 50 to 1000 Volts Case Style WOG 0.388 (9.86) 0.348 (8.84) 0.220 (5.6) 0.160 (4.1) Forward Current – 2.0 Amperes FEATURES 1.0 (25.4) MIN. 0.032 (0.81) 0.028 (0.71) 0.060 (1.52) 0.020 (0.51) ♦ Plastic package has Underwriters Laboratory Flammability Recognition 94V-0 ♦ This series is UL listed under the Recognized Component Index, file number E54214 ♦ Glass passivated chip junctions ♦ High case dielectric strength ♦ Typical IR less than 0.5µA ♦ High surge current capability ♦ Ideal for printed circuit boards ♦ High temperature soldering guaranteed: 260°C for 10 seconds, 0.375″ (9.5mm) lead length, 5lbs. (2.3kg) tension 0.220 (5.6) 0.348 (8.84) 0.308 (7.82) 0.180 (4.6) MECHANICAL DATA 0.220 (5.6) 0.180 (4.6) Dimensions in inches and (millimeters) Case: Molded plastic body over passivated junctions Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 Mounting Position: Any Weight: 0.04 ounce, 1.1 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. SYMBOLS 2W 005G 2W 01G 2W 02G 2W 04G 2W 06G 2W 08G 2W 10G UNITS Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current 0.375″ (9.5mm) lead length (SEE FIG. 1) Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) Rating for fusing (t<8.3ms) Maximum instantaneous forward voltage drop per leg at 2.0 Amperes Maximum DC reverse current at rated DC blocking voltage per leg Typical junction capacitance per leg (NOTE 1) Typical thermal resistance per leg (NOTE 2) Operating junction temperature range Storage temperature range TA=25°C TA=125°C VRRM VRMS VDC I(AV) IFSM I2t VF IR CJ RΘJA RΘJL TJ TSTG 50 35 50 100 70 100 200 140 200 400 280 400 2.0 60.0 15.0 1.1 5.0 500.0 600 420 600 800 560 800 1000 Volts 700 Volts 1000 Volts [ ... ]

2W10G PDF File
