NAS1097 PDF – NAS1097 100° Solid Rivet

Part number : NAS1097

Functions : NAS1097 100° Solid Rivet

Manufacturer : Aerospace Industries Association

Image :
NAS1097 image

Functions :

NAS1097 100 degree solid rivets – flush shear head made of 2117-T4 aluminum alloy. Anodized per MIL-A-8625, Type II, Class 1, yellow in color.

NAS1097 datasheet pdf



NAS1097 Datasheet PDF



Posted in Uncategorized

MG995 – Metal Gear Dual Ball Bearing Servo

Part number : MG995

Functions : High Speed Metal Gear Dual Ball Bearing Servo

Package information : 3Pin

Manufacturer : TowerPro

Image :

MG995 image

Functions :

This high-speed standard servo can rotate approximately 120 degrees (60 in each direction). You can use any servo code, hardware or library to control these servos, so it’s great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. The MG995 Metal Gear Servo also comes with a selection of arms and hardware to get you set up nice and fast!

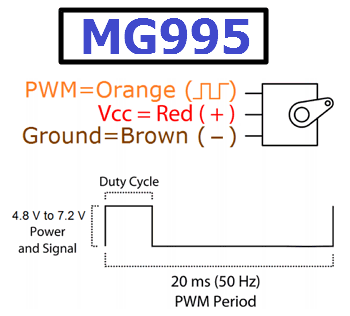

Pinout :

MG995 datasheet pinout

Specifications
1. Weight: 55 g
2. Dimension: 40.7 x 19.7 x 42.9 mm approx.
3. Stall torque: 8.5 kgf·cm (4.8 V ), 10 kgf·cm (6 V)
4. Operating speed: 0.2 s/60º (4.8 V), 0.16 s/60º (6 V)
5. Operating voltage: 4.8 V a 7.2 V
6. Dead band width: 5 µs
7. Stable and shock proof double ball bearing design
8.  Temperature range: 0 ºC – 55 ºC



MG995 Datasheet PDF PDF Download

MG995 pdf
